Air-cooled handheld fiber laser welders — power on and weld, no pre-cooling, no maintenance, 4–10× faster than traditional welding. Plus laser welding wires (0.2–0.6mm) always in stock in Malaysia.
The new generation of air-cooled handheld laser welding — simpler, lighter and far cheaper to run than water-cooled machines and argon arc welding.
No pre-cooling or pre-heating required — switch on and start welding immediately. Time saved on every job.
Compared with argon arc welding, electricity consumption drops by 80–90%. Versus water-cooled laser welders, power use is halved.
Massively higher production speed than traditional TIG/MIG welding, with cleaner seams that need little or no polishing.
Air-cooled design eliminates the water chiller — no coolant, no filters, no realignment. Near-zero upkeep cost.
680×280×500mm and 49kg on single-phase 220V — move it around the workshop or take it to site jobs.

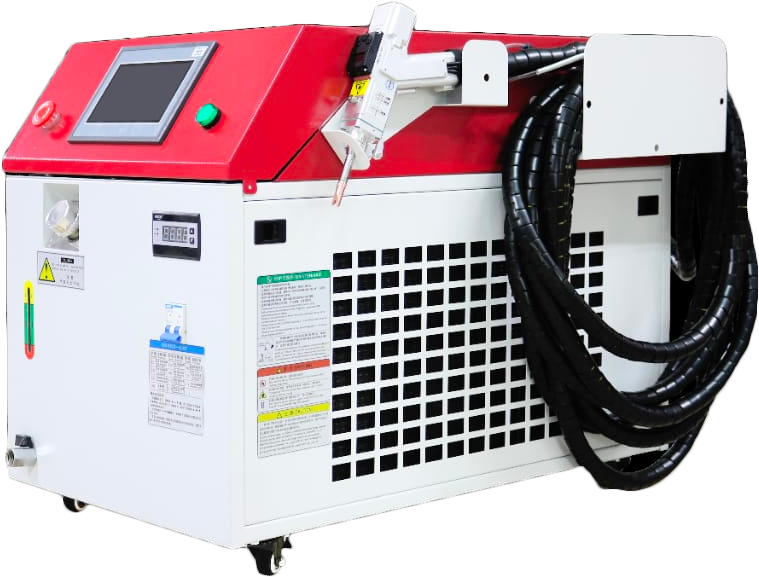

Touch-screen control with preset parameters — a general worker produces professional welds after brief training.
| Parameter | Specification |
|---|---|
| Laser power | 2000W (R20) / 1500W (R15), adjustable 10–100% |
| Welding penetration | R20: 0.35–5.0mm · R15: 0.35–4.0mm |
| Welding width range | 0.3–6mm |
| Welding wire diameter | 0.8 / 1.0 / 1.2 / 1.6mm (wire feeder) |
| Optical fiber | 25μm |
| Cooling | Air-cooled — no chiller required |
| Machine size / weight | 680×280×500mm · 49kg |
| Work environment | -20 to 42°C |
| Power supply | Single-phase 220V · 3.8kW |
Specifications for reference; final configuration per signed product documentation.
Precision laser welding wires from 0.2mm to 0.6mm diameter for mould repair and fine welding — ready stock in Malaysia, plus 0.8–1.6mm wires for handheld welding.
0.2–0.6mm precision wires for mould and die repair welding — the fine diameters workshops need most.
Wires for stainless steel, carbon steel, aluminium and specialty alloys to match your base material.
Held in stock in Malaysia for fast delivery — keep your production and repair work moving.
Tell us your materials and thicknesses — we'll recommend R15 or R20 and arrange a welding demonstration at our showroom.
